M9


M9 Ultrasound System Suppliers
Overview

Based on Instromedix India's new generation ultrasound platform, mQuadro, M9 has raised the industry standards to an all new level. Advanced signal transmission and reception processors provide highly sensitive and accurate echo detection. Innovative transducer technologies allow for better penetration, higher resolution, greatly enhancing your diagnostic experience.

TECHNOLOGY DESCRIPTIONSE

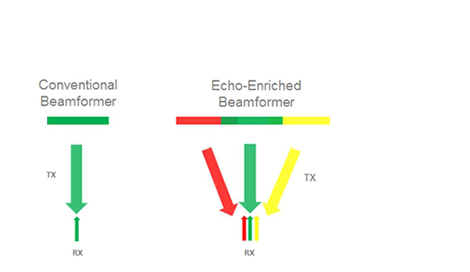

Echo-enriched Beam Forming

Echo-enriched beam former permits the use of traditionally neglected echo signals of adjacent beams to form one finer and stronger imaging beam, providing better ‘out-of-focus’ image resolution and deeper image penetration.

M9 Ultrasound System Suppliers

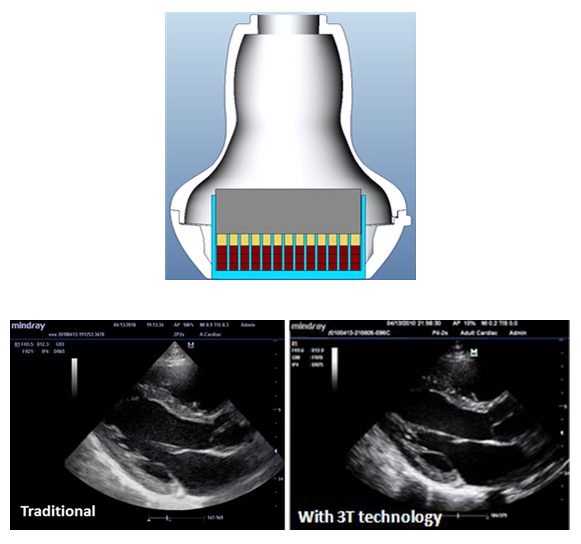

3T Transducer TechnologyTM

Instromedix India’s patent transducer technology to increase image bandwidth and transmission efficiency.

  • Triple-matching layer design for higher sensitivity, wider bandwidth, and improved S/N
  • Total-cut design for lower cross-talk noise, better directivity, and improved lateral resolution
  • Thermal-control design for better acoustic transmission
3T Transducer Technology

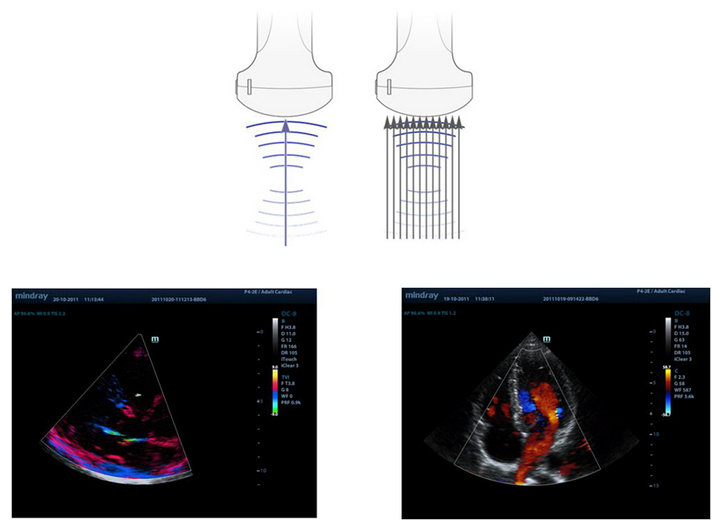

Multi-Beam Formation

Maximum 12 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

Multi-Beam Formation
iClear (Need application specific images)

Gain improved image quality based on auto structure detection.

  • Sharper & Continuous Edges
  • Smooth Uniform Tissues
  • Cleaner ‘no echo areas’

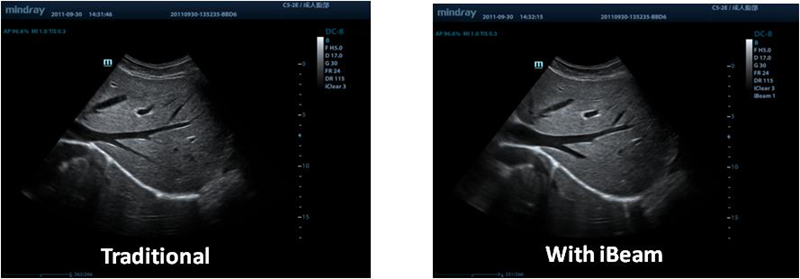

iBeamTM

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

iClear (Need application specific images)

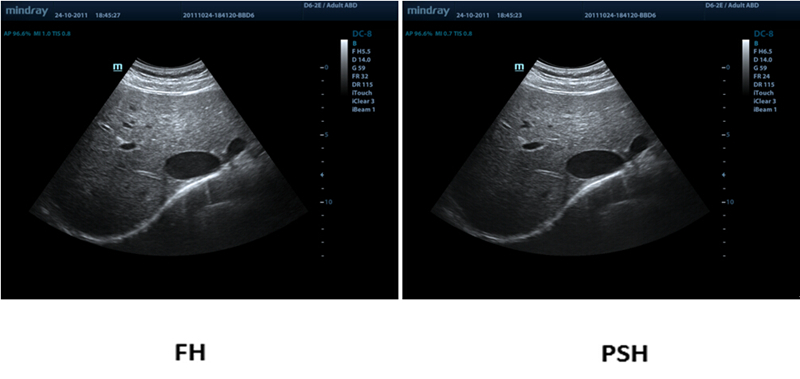

PSHITM(Phase Shift Harmonic Imaging)

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

Phase Shift Harmonic Imaging

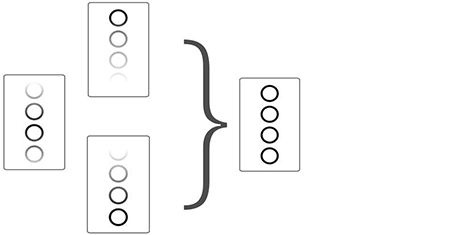

FCI (Frequency Compounding Imaging)

Permits compounding of different frequencies to form best whole field image homogeneity, providing better penetration especially for high frequency scan

FCI (Frequency Compounding Imaging)

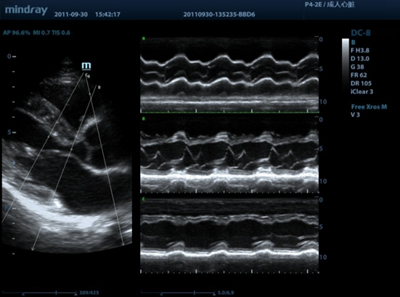

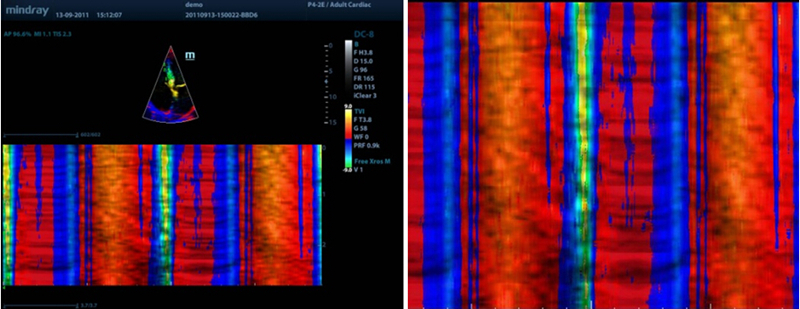

Free Xros MTM

Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through simultaneous display of up to 3 sample lines.

Free Xros M
Free Xros CMTM

Accurately evaluate myocardial motion at different phases, and simultaneously determine myocardial synchronization. High frame-rate providing you with accurate results:

Free Xros M

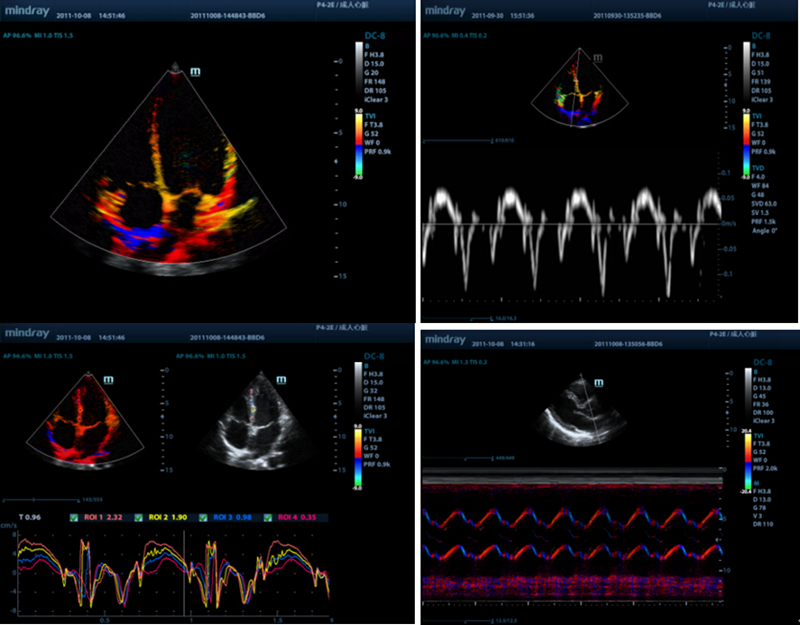

TDI

Tissue Doppler Imaging allows you to quantitatively evaluate local myocardial movement and function, providing complete TDI modes for faster and direct diagnoses.

TDI
LVO with Stress Echocardiography

M9’s premium capabilities allow for LV opacification during stress, enhancing discrimination between myocardial tissue and blood pool, providing better visualization of the endocardial surface. Stress Echo feature on M9 includes a complete package for pharmacological stress and exercise stress echo. The package is supported by a flexible reporting system that can be optimized for your individualistic needs.

AutoEF

Intelligent way to analyze 2D echo clips to automatically recognize diastole/systole frames and output EDV/ESV/EF etc. results by Simpson method.

iNeedleTM(Needle Enhancement Visualization)

Advanced needle visualization allows the needle increased visibility even during steep-angled procedures, while maintaining superior image quality. Improved confirmation of needle location in tissue minimizes harm to surrounding tissue.

Workflow

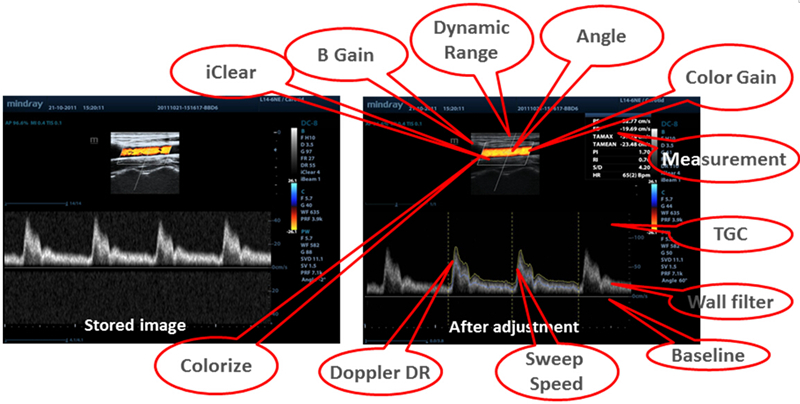

Raw Data

Enables optimum flexibility for post processing of the stored images including parameter adjustments, adding comments and measurements, allowing maximum productivity during scanning.

Raw Data

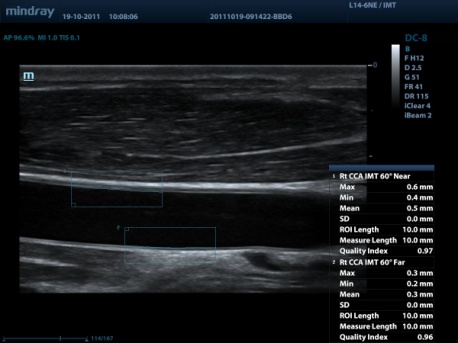

Auto IMT (Intima-Media Thickness)

Auto measurement of anterior and posterior wall thickness providing accurate carotid status.

Auto IMT (Intima-Media Thickness)

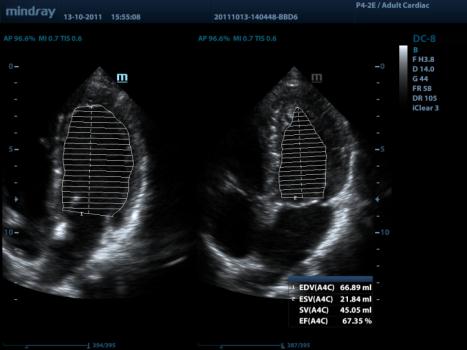

Auto LV

Simple measurement procedure for left ventricle enhanced by auto-trace functionality and easy manual correction.

Auto LV
iStationTM

Instromedix India’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.

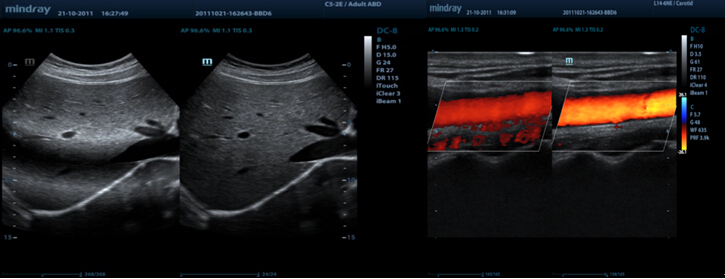

iTouchTM

Gain instant auto image optimization in B, Color and PW Modes on the click of a single key.

iTouch

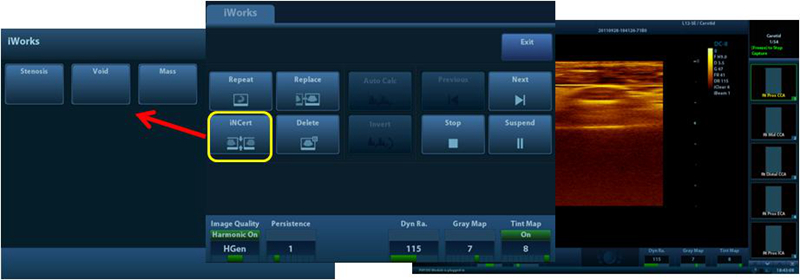

iWorksTM

A smart tool to let you focus more on the patient.Helps in significantly reducing the patient scan time through standardization and user-defined capability.

iWorks
iScanhelper

Dedicated inbuilt tutorial software, iScanHelper provides you with an interface to learn “How & What” of ultrasound scanning. Supported with excellent practical examples and illustrations, iScanHelper, with its easy and practical usability, is an effective educational tool either for beginners or experienced professionals.

Transducers
iScanhelper

C5-1s

c6-2Gs

c6-2Gs

C11-3s

C11-3s

CW2s

CW2s

CW5s

CW5s

L10-3s

L10-3s

L12-4s

L12-4s

L14-6Ns

L14-6Ns

L14-6ws

L14-6ws

LM14-6s

LM14-6s

P7-3s

P7-3s

P7-3Ts

P7-3Ts

P10-4s

P10-4s

SP5-1s

SP5-1s

V11-3Ws

V11-3Ws
