Transducers


ZONARE’s transducer technology and growing family of transducers expand both imaging capabilities and applications. All are designed with both patient and clinician comfort in mind.

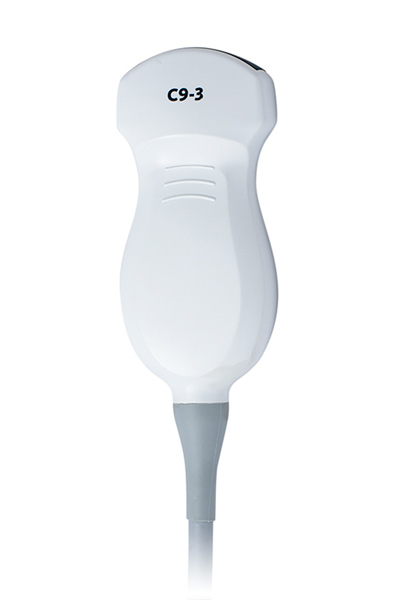

C9-3 Curved Array
Special Attributes:
  • 13 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging
Applications:
  • Obstetrics (all trimesters),
  • Pediatric/Small Adult Abdominal Imaging,
  • Fetal Heart and Peripheral Vascular Imaging
Needle guide:Yes
Transducers Medical Imaging System
C6-2 Curved Array
Special Attributes:
  • 12 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging
Applications:
  • Abdominal, Abdominal Vascular,
  • Obstetrics, Fetal Heart, Gynecologic,
  • Contrast Enhanced Ultrasound (CEUS)
Needle guide:Yes
Transducers Medical Imaging System
C4-1 Curved-Phased Array
Special Attributes:
  • 8 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging
Applications:
  • Abdominal, Abdominal Vascular,
  • Obstetrics, Fetal Heart, Gynecologic, Trauma (FAST exams),
  • Contrast Enhanced Ultrasound (CEUS)
Needle guide:Yes
Transducers Medical Imaging System
C10-3 Curved-Phased Array
Special Attributes:
  • 13 frequencies - 2D/Mode,
  • Tissue Harmonic, Compound Harmonic Color Doppler,
  • PW Doppler, CW Doppler, Tissue Doppler
Applications:
  • Neonatal Head, Neonatal Abdominal,
  • Pediatric Echo, Pediatric Abdominal,
  • General Cardiology, Ocular
Needle guide:N/A
Needle guide
L20-5 Linear Array (Available only on ZS3)
Special Attributes:
  • 32 millimeter aperture and up to five centimeter penetration.
  • Supports B-Mode, compounded harmonics,
  • Spatial compounded harmonics CD-Mode, PDI, dPDI, PW-Mode,
  • HPRF, M-Mode, elastography and CEUS
Applications:
  • Musculoskeletal, Pediatric, Superficial Anatomy,
  • Interventional, Testicular, Breast, Ocular,
  • Vascular, and research in advanced applications,
  • Contrast Enhanced Ultrasound (CEUS)
Needle guide:N/A
Needle guide
L14-5w Linear Array(Wide-Field-of-View)
Special Attributes:
  • 55 mm wide field-of-view. 10 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging
Applications:
  • Small Parts, Musculoskeletal, Nerve Blocks,
  • Pediatric Hips, Superficial Anatomy, Ocular,
  • Contrast Enhanced Ultrasound (CEUS)

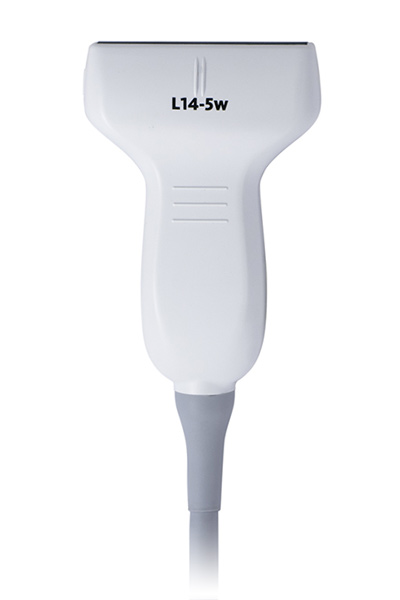

Needle guide:Yes - Longitudinal & Transverse
Needle guide: Yes - Longitudinal and Transverse
L10-5 Linear Array
Special Attributes:
  • 6 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic
Applications:
  • Small Parts, Musculoskeletal,
  • Nerve Blocks, Pediatric Hips,
  • Superficial Anatomy, Ocular
Needle guide:Yes - Longitudinal & Transverse

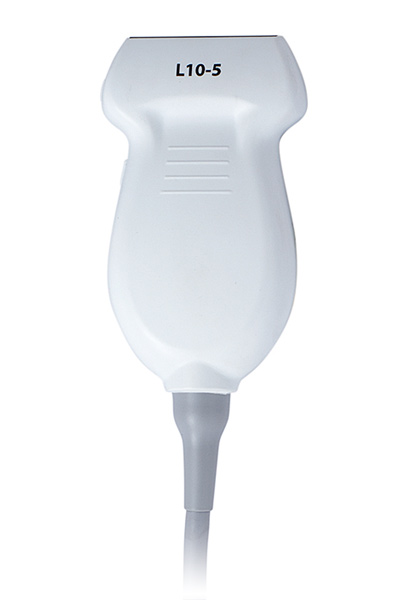

L10-5 Linear Array
L8-3 Linear Array
Special Attributes:
  • 10 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic;
  • Built-in transverse needle guide
Applications:
  • Peripheral Vascular,
  • Nerve Blocks,
  • Pediatric Hips
Needle guide:Yes

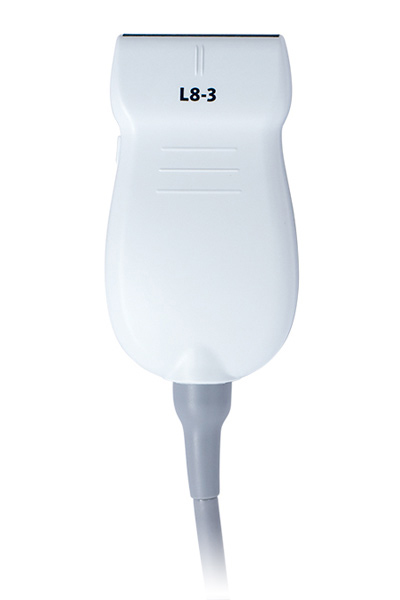

Needle guide

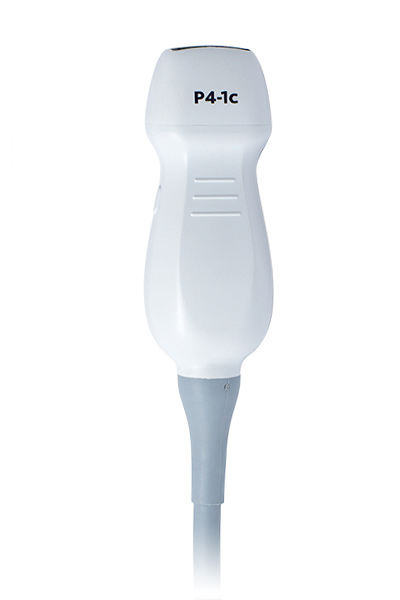

P4-1c Phased Array
Special Attributes:
  • 14 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging
Applications:
  • Echocardiography, Transcranial Imaging/Doppler,
  • Trauma (FAST Exams), Deep Abdominal,
  • Abdominal Vascular, Renal, Aorta,
  • Contrast Enhanced Ultrasound (CEUS)
Needle guide:N/A
P4-1c Phased Array

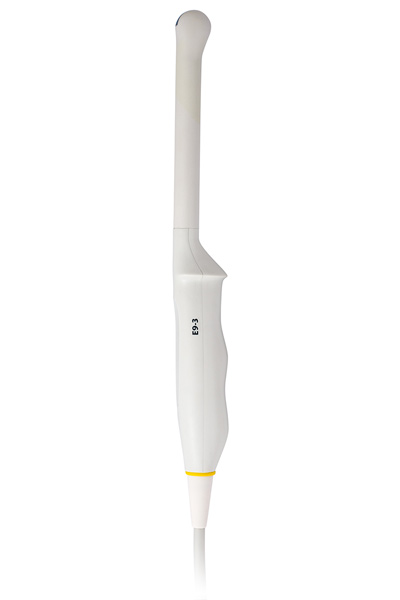

E9-3 Endocavity
Special Attributes:
  • 9 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging
Applications:
  • Endovaginal and Endorectal
Needle guide:Yes
Endovaginal and Endorectal

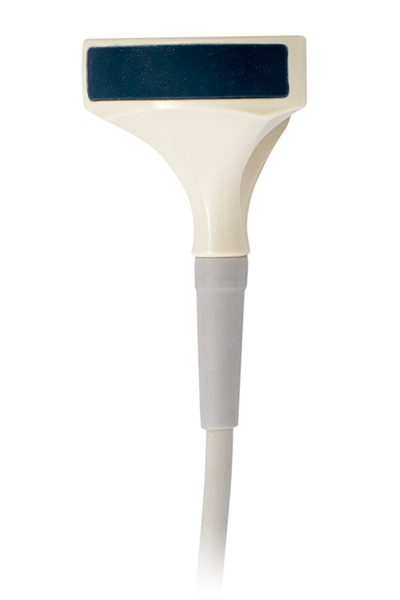

L14-5sp Linear Array(Special Procedures)
Special Attributes:
  • 9 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging
Applications:
  • Intraoperative, Neonatal,
  • Infant, Pediatric Patients, Ocular
Needle guide:Yes
9 frequencies - 2D/M-Mode
C9-3sp Curved Array(Available only on ZS3)
Special Attributes:
  • 13 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging,
  • Extended Cable Length (2.5 m)
Applications:
  • Intraoperative (visceral and vascular),
  • Neonatal, Pediatric,
  • Contrast Enhanced Ultrasound (CEUS)
Needle guide:N/A
Needle guide

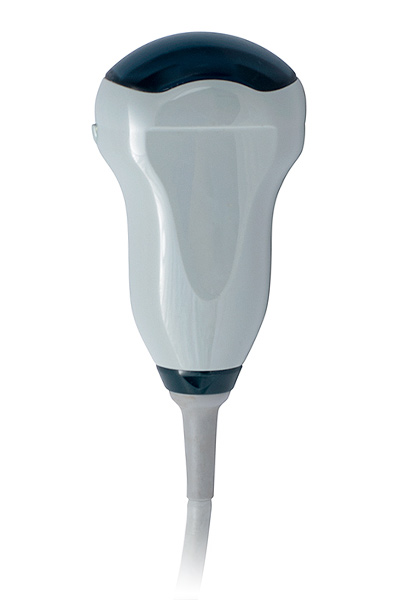

C8-33D Curved Array(Available only on ZS3)
Special Attributes:
  • 9 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic
Applications:
  • OB/GYN & Abdomen 3D & 4D (static and real-time) Surface Rendering,
  • Multi-Planar Rendering and Tomographic Slice Imaging Mode
Needle guide:N/A
Applications
E9-33D Endocavity(Available only on ZS3)
Special Attributes:
  • 9 frequencies - 3D/4D (static and real-time); 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging
Applications:
  • Endovaginal including First Trimester OB/GYN (uterus, ovaries),
  • Surface Rendering,
  • Multi-Planar Rendering and Tomographic Slice Imaging Mode
Needle guide:N/A

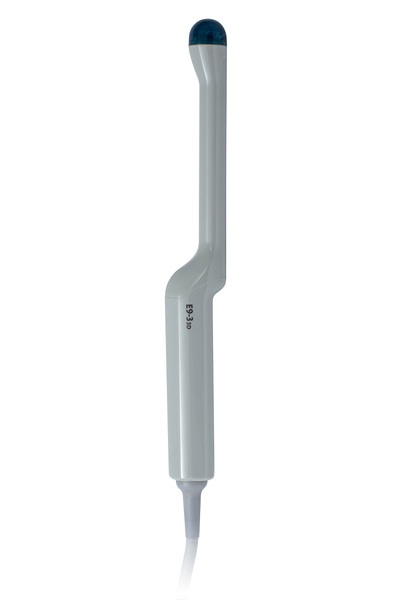

9 frequencies - 3D/4D (static and real-time)

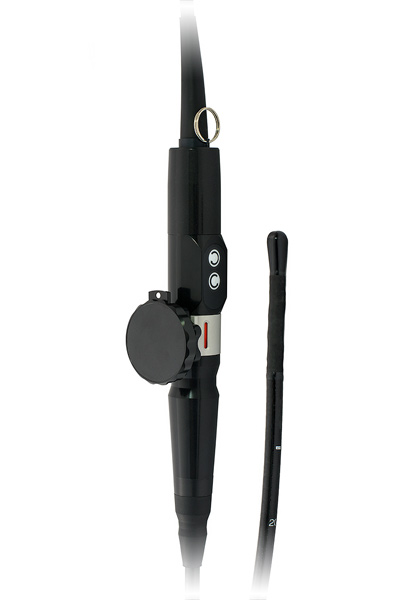

P8-3TEE Phased Array
Special Attributes:
  • 3 frequencies, 2D/M-Mode,
  • Color, Power, PW,
  • Continuous Wave Doppler
Applications:
  • Transesophageal
  • Echocardiography
Needle guide:N/A
E9-4 Endocavity(Available on Kaiser Systems Only)
Special Attributes:
  • 9 frequencies - 2D/M-Mode;
  • Color/Power/PW Doppler;
  • Tissue Harmonic, Compound Harmonic, Compound Imaging
Applications:
  • Endovaginal and Endorectal
Needle guide:Yes

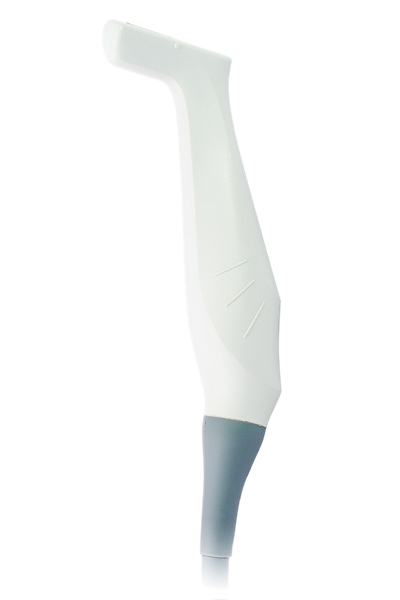

9 frequencies - 2D/M-Mode

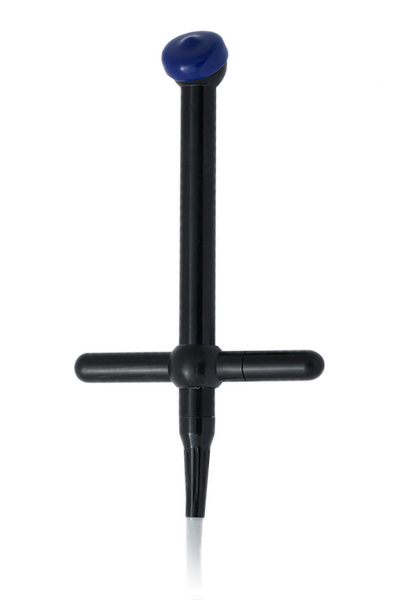

A2 Continuous Wave
Special Attributes:
  • 2 MHz Continuous Wave (CW),
  • non-imaging pencil probe
Applications:
  • Adult,
  • Adolescent Echocardiography
Needle guide:N/A
Adolescent Echocardiography

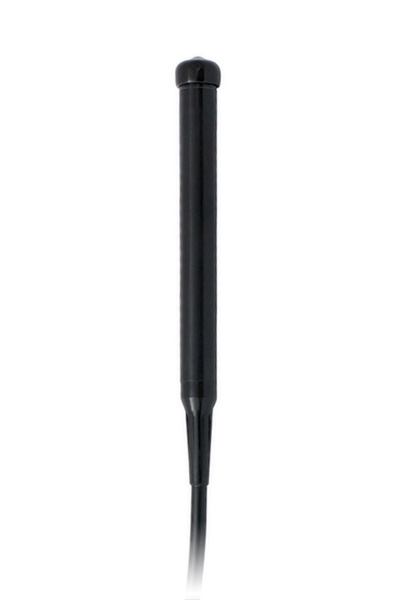

A5 Continuous Wave
Special Attributes:
  • 5 MHz Continuous Wave (CW),
  • non-imaging pencil probe
Applications:
  • Peripheral Vascular
Needle guide:N/A
5 MHz Continuous Wave (CW)
