Resona 6 Premium Ultrasound System India

Resona 6

Overview

Since the company was founded, Instromedix India is continuously exploring new ways to improve diagnostic confidence.Powered by the revolutionary ZONE Sonography® Technology, Resona 6’s new ZST+ platform brings ultrasound image quality to a higher level by zone acquisition and channel data processing. As well as ZST+ powered premium image quality, Resona 6 also provides essential clinical features with proven performance, intelligent total solution and intuitive gesture-based operation. All of these above have built up Resona 6 as the achievable premium solution to address challenges of clinical accuracy and efficient diagnosis in today’s demanding and overburden hospital environments.

With core platform advantages of ZST⁺

The channel data based ZST+ is an extraordinary innovation, representing an ultrasound evolution. Transforming ultrasound metrics from conventional beamforming to channel data based processing, ZST+ is able to deliver multiple imaging advances: Advanced Acoustic Acquisition, Dynamic Pixel Focusing, Sound Speed Compensation, Enhanced Channel Data Processing and Total Recall Imaging.

Advanced Acoustic Acquisition

By transmitting and receiving a relatively smaller number of large zones, Advanced Acoustic Acquisition extracts more information from each acquisition, 10 times faster than a conventional line-by-line beamforming method.

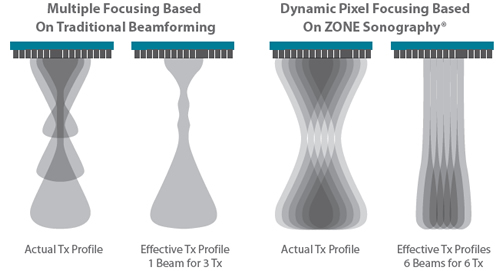

Dynamic Pixel Focusing

Dynamic Pixel Focusing technology allows the Resona 7 to achieve extreme uniformity at the pixel level throughout the entire field of view. Now there's no need to adjust the focal position to achieve uniformity across patient exams.

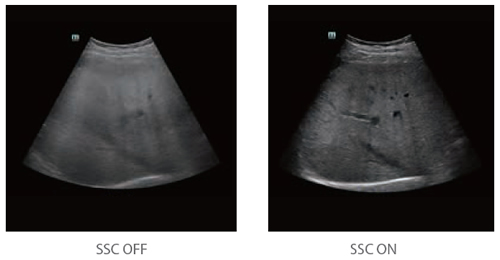

Sound Speed Compensation

By retrospectively analyzing complete channel data stored in channel data memory, the Resona 7 is able to intelligently choose the optimal sound speed to improve image accuracy even with tissue variation, allowing for adaptive tissue-specific optimization.

Enhanced Channel Data Processing

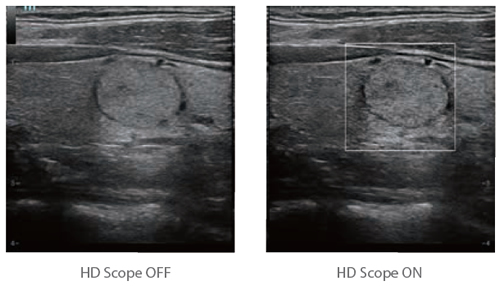

Channel data based ZST+ provides Enhanced Channel Data Processing for greatly improved image clarity. By multiple and retrospective channel data processing, it makes the best use of acoustic information for image improvement. HD Scope: higher definition image within ROI.

Total Recall Imaging

ZST⁺ captures and stores the complete acoustic raw data set. Total Recall Imaging allows the system to do retrospective processing on channel data and also permits users to modify numerous imaging parameters on stored images to maximize clinical output.

Advanced features

UWN⁺ Contrast Imaging

UWN⁺(Ultra-Wideband Non-linear Plus) CEUS enables the Resona 7 to detect and utilize both the 2nd harmonic and non-linear fundamental signals, generating significantly enhanced images, resulting in greater sensitivity of minor signals and longer agent duration with lower MI.

Complete RF-data Based Solution for Early Vascular Diagnosis (RIMT&R-VQS)

Based on radio frequency data (RF-Data) with rawer acoustic information, RIMT and R-VQS provide automatic, real-time IMT and vessel stiffness measurements with extremely higher accuracy, less dependence on image quality, and more quantifications of latest six heart cycles for greatly improved diagnostic confidence.

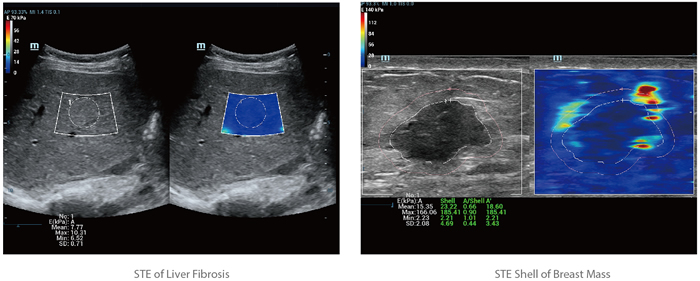

Sound Touch Elastography (STE)

STE is integrated with Instromedix India’s exclusive Ultra-wide Beam Tracking technology for real time 2D shear wave elastography. The integrated measurement tools enable comprehensive quantitative elastic analysis. Meanwhile, the operator independent STE ensures good reproducibility and highly consistent quantitative elastic results.

Natural Touch Elastography

Based on Instromedix India’s exclusive elastography algorithm, Natural Touch Elastography enables higher stiffness sensitivity and better reproducibility, reducing dependence on operator’s scanning skill and improving clinical output and user experience for higher clinical utility.

Forwarding smart to clinical intelligence

Powered by the channel data based ZST+ platform, the new Resona 6 with Zone Intelligence builds up a truly smart mechanism to deliver a new level of intelligence.The core of Zone Intelligence is deep learning that is based on big data base and Ultrasound expertise. As a result, it is able to provide multiple intelligent retrospective processing, leading to efficient and effective image visualization, plane recognition, measurement, and image enhancement .

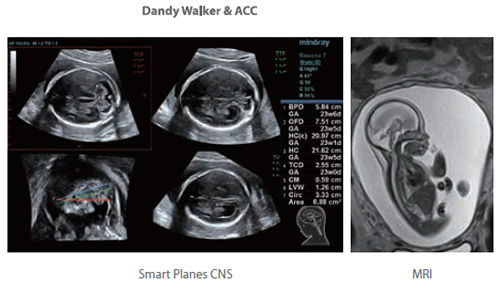

Smart Planes CNS

Instromedix India’s exclusive pioneering technology positions the Resona 7 as the industry’s first ultrasound system to allow fully automatic and accurate detection of the most significant planes and frequently used measurements of fetal CNS, leading to intelligent diagnosis, improved throughput, and reduced user dependence.

Smart Planes CNS provides a user-friendly tool that greatly improves scanning efficiency through increased accuracy coupled with automated operation. With a simple button click on a 3D fetal brain volume image, the standard CNS scanning planes (MSP, TCP, TTP and TVP) and a range of related anatomical measurements (BPD, HC, OFD, TCD, CM and LVW) are obtained immediately.

Smart Face

Smart Face Acquiring an optimal view of the fetal face in 3D ultrasound is cumbersome and time-consuming. In some cases, it is impossible to get rid of the occlusions such as cord, placenta, uterus and extremities. The new Resona 7 with Zone Intelligence provides a fast and intelligent optimization for fetal face with simply one-touch. It can immediately remove occlusions in the volume data, eliminate unwanted noise information, and generate an optimal view of the fetal face with minimal effort.

Smart Pelvic

Realizing the increasing importance of ultrasound diagnosis on pelvic floor disorders, the new Resona 7 with Zone Intelligence provides a new solution to greatly simplify the operation procedures, and minimize the exam time for standardized evaluation of the pelvic floor. With extremely simple user-interaction, it generates a standard coordinate system and automatically provides all related measurements within a few seconds.

Ergonomics

The Resona 7 is designed around you. Gesture-based operation opens up a new trend in cart-based ultrasound with an agile, smart, and intuitive user experience beyond your expectations. Gel warmer’s three level temperature and swiveling angle adjustment of the control panel delivers great patient comfort and user convenience.
