DC-60


DC-60 X-Insight Ultrasound
Overview

Instromedix India's DC-60, incorporating innovative technologies from advanced ultrasound systems, delivers optimal image quality and a wide range of application capabilities all at an affordable cost. In particular, its unique touch gesture feature is designed to help improve workflow and facilitates ease and confidence of use, enabling you to put patient care first. Automation tools including standardized exam protocols and a number of auto-measurement packages, would help you reduce scan time, and increase everyday efficiency. Instromedix India understands the reality of tight working spaces, so the DC-60 lightweight system has a small footprint for increased portability and maneuverability. In short, DC-60's capabilities and efficiency make it a practical choice and a good investment for clinicians.

Performance
Echo-enriched Beam Forming

Echo-enriched beam former permits the use of traditionally neglected echo signals of adjacent beams to form one finer and stronger imaging beam, providing better ‘out-of-focus’ image resolution and deeper image penetration.

Performance

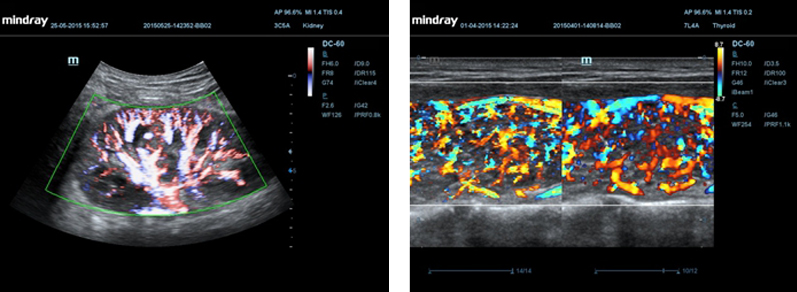

HR FlowTM

An innovative technology to better visualize tiny vessels and complex flow patterns, based on Instromedix India's exclusive processing algorithm.

HR Flow
PSHTM(Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

iBeamTM

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

iClearTM

Gain improved image quality based on auto structure detection.

  • Sharper & Continuous Edges
  • Smooth Uniform Tissues
  • Cleaner ‘no echo areas’
B-Steer/iNeedleTM

Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.

B-Steer/iNeedle
iScapeTM

Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.

Workflow
Gesture Sensitive Touch Screen

The smart 10.4 inch motion sensitive touch screen lets you do more than you ever imagined. Be it scrolling through images, shifting the image to and from the monitor, zoom in/out, measure or starting specific user-defined functions with a defined hand motion, the DC-60 allows to get more done and much faster.

Workflow
Auto IMT (Intima-Media Thickness)

Auto measurement of anterior and posterior wall thickness providing accurate carotid.

iScanHelper

Auto measurement of anterior and posterior wall thickness providing accurate carotid.

  • Dedicated inbuilt tutorial software
  • Anatomical diagram illustrations including schematic structure tips and coded tissue
  • Standard ultrasonogram comparison with real-time scanning
  • Scanning reference picture demonstrating adequate patient position and probe placement tips on scanning skills and diagnosis information
Raw Data

Enables optimum flexibility for post processing of the stored images including parameter adjustments, adding comments and measurements, allowing maximum productivity during scanning.

iZoomTM

Gain instant full screen view on the click of a single key.

iTouchTM

Gain instant auto image optimization in B, Color and PW Modes on the click of a single key.

iWorksTM

A smart tool to let you focus more on the patient. Helps in significantly reducing the patient scan time through standardization and user-defined capability.

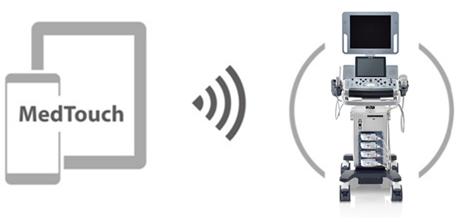

MedTouch

Size and physical distance now is no longer an obstacle. With MedTouch, a one-stop solution provides you with a smarter way to control the ultrasound device, access patient data and inbuilt tutorial software via your android operated smart device.

MedTouch

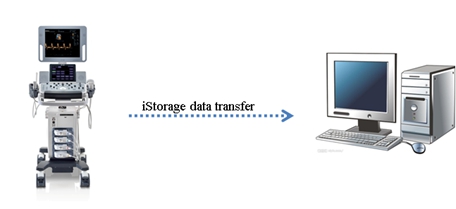

iStorageTM

Directly transfers images and reports to PC via wired or wireless network.

iStorage

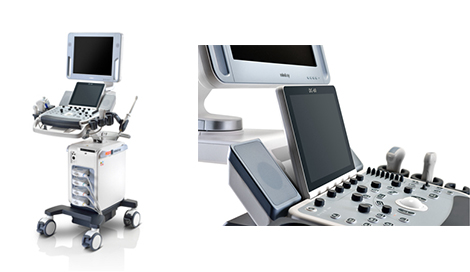

Ergonomics
  • 17'' LED monitor with 180°rotational angle
  • 10.4'' gesture sensitive touch screen with adjustable angle
  • Rotatable and height adjustable control panel
  • Gel warmer
  • Dedicated endo.swfty transducer holder
  • Built-in battery
Ergonomics
Transducers
C6-2

C6-2

3C5A

3C5A

6C2

6C2

7L4A

7L4A

L14-6NE

L14-6NE

CW5s

CW5s
