M7 PREMIUM


Overview

Award winning portable hand-carried color Doppler, M7 premium is a High level system with excellent performance. Equipped with dedicated cardiac package and easy-to-use workflow software, M7 premium offers an ideal packaged solution to address the needs of cardiologists.

Performance
3T Transducer Technology

Instromedix India’s patent transducer technology to increase image bandwidth and transmission efficiency.

  • Triple-matching layer design for higher sensitivity, wider bandwidth, and improved S/N
  • Total-cut design for lower cross-talk noise, better directivity, and improved lateral resolution
  • Thermal-control design for better acoustic transmission
PSHITM(Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

iBeamTM(Spatial Compound Imaging)

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

iClearTM(Speckle Suppression Imaging)

Gain improved image quality based on auto structure detection.

  • Sharper & Continuous Edges
  • Smooth Uniform Tissues
  • Cleaner ‘no echo areas’
Multi-beam formation

Maximum 8 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

Stress Echo

Gain accurate measurement of the myocardial function in response to external stress or pharmacy.

Free Xros MTM

Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through simultaneous display of up to 3 sample lines.

TDI

Tissue Doppler Imaging allows you to quantitatively evaluate local myocardial movement and function, providing complete TDI modes for faster and direct diagnoses.

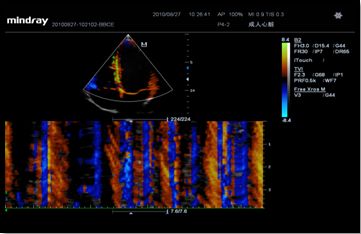

Free Xros CMTM

Accurately evaluate myocardial motion at different phases, and simultaneously determine myocardial synchronization. High frame-rate providing you with accurate results.

Workflow
iTouchTM(Auto Image Optimization)

Gain instant full screen view by a swipe

IMT (Intima-Media Thickness)

Auto measurement of anterior and posterior wall thickness providing accurate carotid status.

iStationTM

Gain instant full screen view by a swipe

iZoomTM

Gain instant full screen view on the click of a single key.

Network storage

Directly transfer images to PC via network cable.

iRoamTM

Wireless data transfer solution.

DICOM

Comprehensive DICOM solution.

Ergonomics
  • Lightweight Portable design
  • Special designed cart with built-in handle
  • Uninterrupted scanning with rechargeable battery
Transducers
Linear

L12-4s
Center Frequency: 7.5MHz

Phased

P4-2s
Center Frequency: 2.5MHz

P7-3s
Center Frequency: 5MHz

P12-4s
Center Frequency: 8MHz

P7-3Ts
Center Frequency: 5MHz

SP5-1s
Center Frequency 2.8MHz
