M9


M9 Ultrasound System India
Overview

Based on Instromedix India's new generation ultrasound platform, mQuadro, M9 has raised the industry standards to an all new level. Advanced signal transmission and reception processors provide highly sensitive and accurate echo detection. Innovative transducer technologies allow for better penetration, higher resolution, greatly enhancing your diagnostic experience.

Performance
3T Transducer Technology with Single Crystal

Providing sharper images, all probes compatible with the M9 come equipped with Instromedix India’s unique 3T transducer technology. Enhanced with the addition of single crystal technology, M9 offers better penetration and color dynamic flow, especially during difficult-patient scanning.

3T Transducer Technology with Single Crystal
Natural Touch Elastography

Based on Instromedix India’s latest patented technology, natural touch elastography reduces dependence on user operation technique, improving operator’s reproducibility for higher clinical utility.

  • Higher stiffness sensitivity
  • Good stability and reproducibility
UWN+ Contrast Imaging (Ultra-Wideband Non-linear)

M9’s biggest advantage lies in its ability to be able to support Instromedix India’s patented technology to enhance contrast imaging capability. UWN+ contrast imaging enables M9 to detect and utilize both 2nd harmonic and non-linear fundamental signals, generating images with significant enhancements.

  • More sensitive minor signal, reduced agent dosage
  • Longer agent duration with lower MI requirement
PSHTM(Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

Tissue Harmonic Imaging (THI)

Utilizing second harmonics generated from tissue boundary layers, THI significantly enhances contrast resolution and improves image quality especially for technically difficult subjects.

Tissue Specific Imaging (TSI)

Tissue Specific Imaging optimizes the image quality based on the properties of the tissue being scanned. Four imaging options are available including general, muscle, fluid and fat.

iBeamTM

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

iClearTM

Gain improved image quality based on auto structure detection

  • Sharper & Continuous Edges.
  • Smooth Uniform Tissues.
  • Cleaner ‘no echo areas’.
Echo-enriched Beam Forming

Echo-enriched beam former permits the use of traditionally neglected echo signals of adjacent beams to form one finer and stronger imaging beam, providing better ‘out-of-focus’ image resolution and deeper image penetration.

Echo-enriched Beam Forming
Multiple Beam Formation

Maximum 4 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

Multiple Beam Formation
Micro Flow Enhancement

Better visualize small vessel perfusions, and better understand vascularity of pathology through the use of multiple frames to generate accumulated images.

iScapeTM

Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.

ExFOV

Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes

Trapezoid imaging

Discover better diagnostic information through extended view of the anatomical structure on all linear probes.

B-Steer/ iNeedleTM

Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.

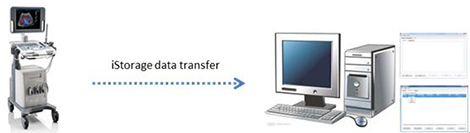

iStationTM

Instromedix India’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.

Workflow
iZoomTM

Gain instant full screen view on the click of a single key.

Auto IMT (Intima-Media Thickness)

Auto measurement of anterior and posterior wall thickness providing accurate carotid status.

iStationTM

Instromedix India’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.

iTouchTM

Gain instant auto image optimization in B, Color and PW Modes on the click of a single ke.

iWorksTM

A smart tool to let you focus more on the patient. Helps in significantly reducing the patient scan time through standardization and user-defined capability.

Raw Data

Enables optimum flexibility for post processing of the stored images including parameter adjustments, adding comments and measurements, allowing maximum productivity during scanning.

Raw Data
Ergonomics
Innovative Crafted Unit
  • Thin Magnesium-alloy body
  • 15.6” LED HD monitor with slim design
  • Built-in battery providing 90 min scanning time
  • High capacity SSD hard drive making patient data safer

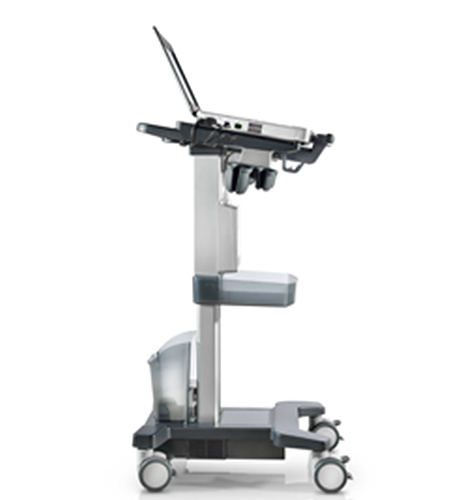

Customized Special Design Trolley
  • Inbuilt quick & easy locking system
  • iPower: over 3.5 hours scanning with trolley mounted battery pack
Green All The Way
  • Noiseless system
  • Automatic brightness adjustment
  • Reliable RoHS certified materials
Green All The Way
Transducers
C5-1s

C5-1s

C11-3s

C11-3s

L12-4s

L12-4s

L14-6Ns

L14-6Ns

V11-3Ws

V11-3Ws
