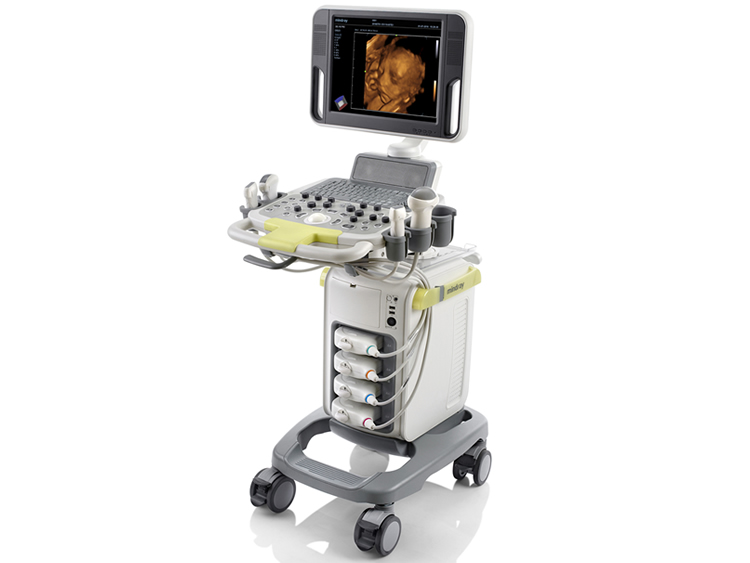

DC-N3 PRO


DC-N3 PRO Ultrasound Machine India
Overview

DC-N3 PRO is designed to provide confident ultrasound diagnosis for obstetric and gynecological healthcare, combining high image quality, versatility and affordability all in one smart system. With the best 4D imaging in range, innovative rendering modes, inbuilt tutorial module and simplified workflow, DC-N3 PRO is truly a redefinition of the base, providing you with much more than just an ordinary ultrasound imaging system.

Performance
PSH™ (Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

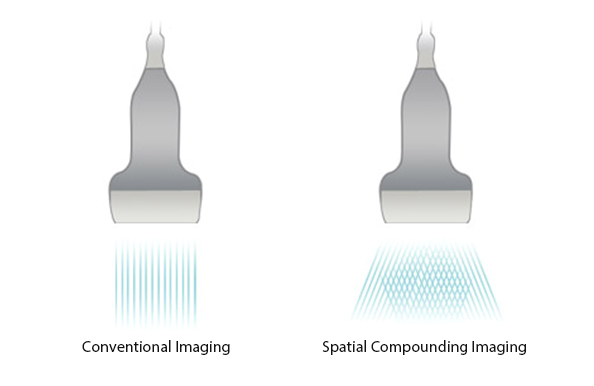

iBeamTM

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

DC-N3 PRO Ultrasound Machine India
iClearTM

Gain improved image quality based on auto structure detection

  • Sharper & Continuous Edges.
  • Smooth Uniform Tissues.
  • Cleaner ‘no echo areas’.

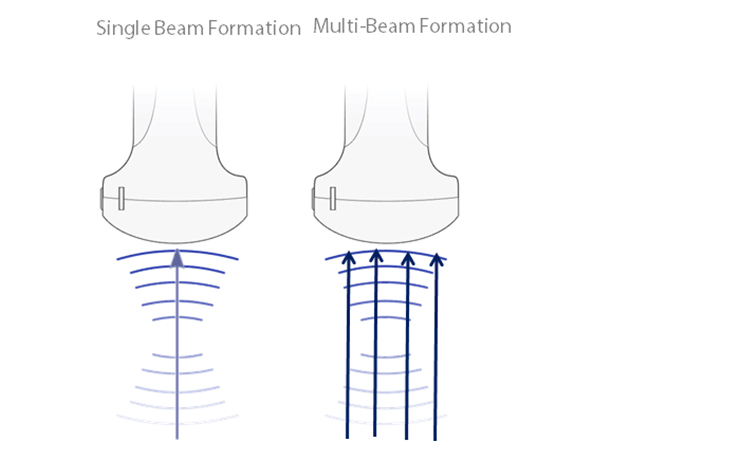

Multiple Beam Formation

Maximum 4 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

Multiple Beam Formation

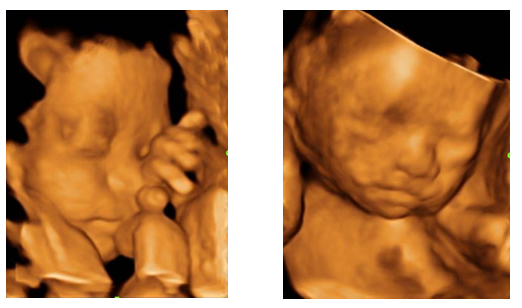

3D/4D Imaging

Including 3D/4D Flip & Sync features providing fast and easy image volume view from any direction.

3D/4D Imaging

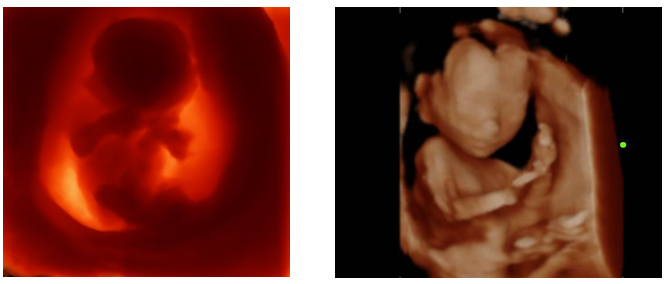

iLive

Integrating traditional ray casting algorithm with a new virtual lighting mode, iLive generates exciting real visual effects such as interactive shadowing, skin scattering and human skin-like images.

iLive

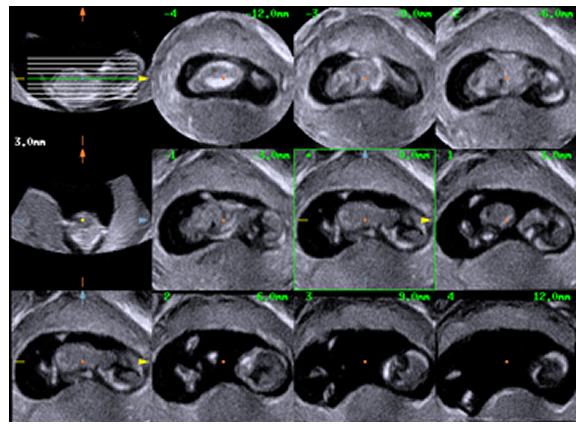

iPageTM

A CT-like view functionality displaying volume data in multiple parallel 2D images to effectively interpret anatomical structures.

iPage
IVF Package
  • IVF patient information (injection time and hormonal level).
  • Intuitive documentation for follicles and endometrial measurements.
  • Dedicated reporting structure to help assess and monitor follicles development and growth.
  • Improve patient management and patient care.

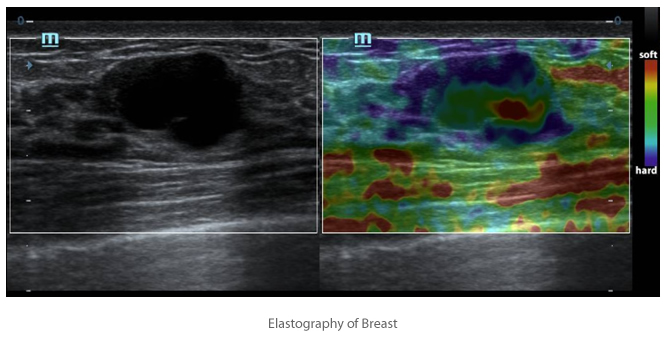

Natural Touch Elastography

Based on Instromedix India’s latest patented technology, Natural Touch Elastography reduces dependence on user operation technique, improving operator’s reproducibility for higher clinical utility.

  • Higher stiffness sensitivity.
  • Good stability and reproducibility.
Natural Touch Elastography
Workflow
iScanHelper

Dedicated inbuilt tutorial software

  • Anatomical diagram illustrations including schematic and ultrasound picture.
  • Standard ultrasonogram comparison with real-time scanning.
  • Scanning reference picture demonstrating appropriate patient position and probe placement .
  • Tips on scanning skills and diagnostic information.
Smart OB

Auto measurement of fetal parameters: trace and calculate the BPD, OFD, HC, AC and FL on a single click.

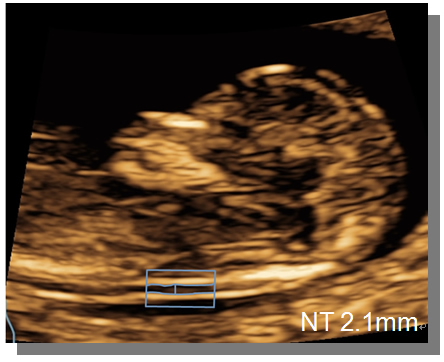

Smart NT

Auto-trace tube cavity edge with measurement result.

Smart NT
Ergonomics
  • 180° rotatable HD monitor.
  • DVD-RW drive and USB ports.
  • Rotatable and height adjustable control panel.
  • User-programmable keys.
  • Cable management design.
  • 4 active transducer sockets.
  • Built-in battery supporting real-time scanning.
Ergonomics
Transducers
Transducers

3C5A
Center Frequency: 6.5MHz

V10-4 Center Frequency: 6.5MHz

V10-4
Center Frequency: 6.5MHz

V10-4B Center Frequency: 6.5MHz

V10-4B
Center Frequency: 6.5MHz

7L4A

7L4A

D6-2

D6-2

D6-2A

D6-2A
